Intel® Celeron® Processor J3455 Quad Core Fanless System

  • Onboard Intel® Celeron® processor J3455 Quad Core, 1.50GHz
  • 3 x HDMI
  • 6 x USB 3.0, 2 x USB 2.0
  • 1 x RS232/422/485, 3 x RS232
  • 3 x Intel® I210 GbE LAN ports; support WoL, teaming and PXE
  • Onboard TPM 2.0 chip
  • 2 x mini-PCIe socket support optional mSATA/Wi-Fi/BT/4G LTE module
  • Support operating temperature from -5 to 55 Celsius degree
  • Support +9V to 30VDC input; support ATX power mode


Powered by the latest generation of Intel® Celeron® processor J3455 (formerly codenamed “Apollo Lake"), NISE 52 is fanlsess PC designed for industrial applications which demand low power consumption and abundant I/O interfaces but with limited installation space.

NISE 52 supports a wide range of operating temperature from -5~55 Celsius degree and wide range DC power input from 9V to 30V. NISE 52 is also the first system in the slim NISE 50 series to support 3 independent displays. The NISE 52 have strong connectivity - Ethernet-based LAN port and traditional serial port, mainly for Modbus TCP or Modbus RTU communication. For wireless connectivity, there are 2 x mini-PCIe socket which can support optional wireless modules for IoT applications, for example, Wi-Fi, Bluetooth, 4G LTE modules as well as storage module. NISE 52 is definitely the best choice for M2M intelligent system as an intelligent IoT gateway.


  • Onboard Intel® Celeron® processor J3455 Quad Core, 1.50GHz

  • 1 x DDR3L 1866 SO-DIMM socket, support up to 8GB

  • 3 x HDMI

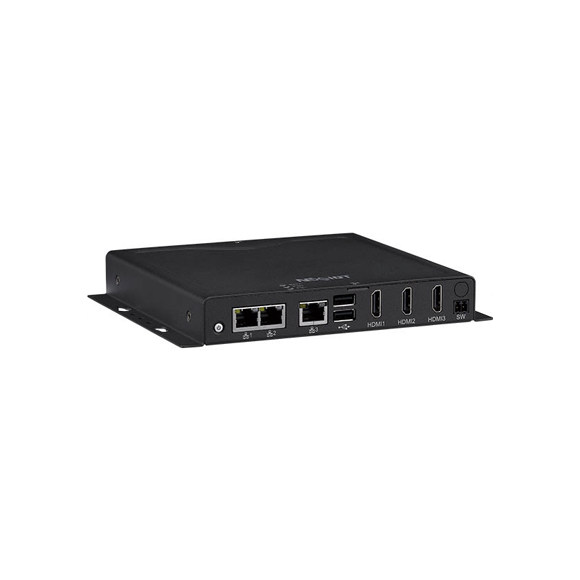

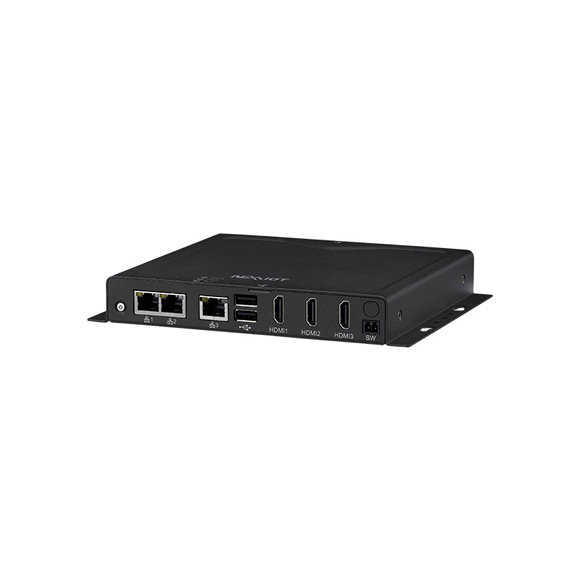

I / O接口-正面
  • ATX power on/off switch
  • 3 x HDMI
  • 3 x Intel® I210 GbE LAN ports; support WoL, teaming and PXE
  • 2 x USB 2.0 (500mA per each)
  • 1 x Antenna hole
  • 1 x 2-pin remote power on/off switch

  • 2 x mini-PCIe socket for optional Wi-Fi/BT/4G LTE/mSATA

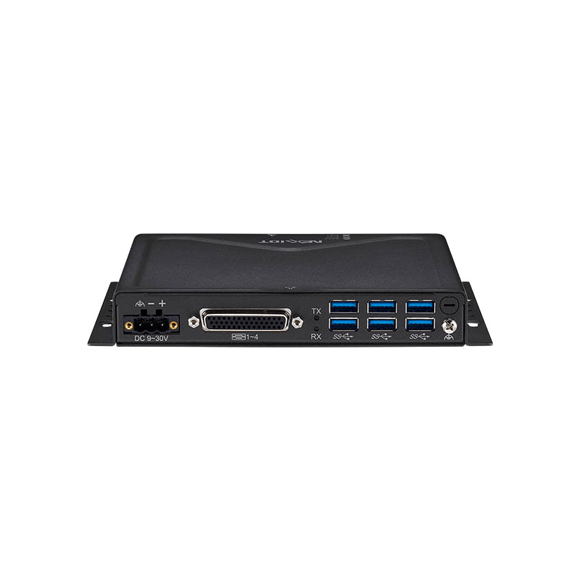

I / O接口-背面
  • 6 x USB 3.0 ports (900mA per each)
  • 1 x DB44 serial port for 4 x COM port
    • COM1: RS232/422/485 with auto flow control and jumper-free setting
    • COM2 & COM3 & COM4: full RS232 signal
  • LED indicator for TX/RX
  • 1 x Antenna hole
  • 1 x 3-pin DC input, support +9V to 30V DC input

I / O接口-内部
  • 4 x GPI and 4 x GPO (programmable to GPI or GPO)
  • 1 x nano-SIM card holder

  • Power input: +9 to +30V DC
  • 1 x Optional 24V, 60W power adapter

  • Windows 10 64-bit
  • Linux Kernel

  • 162mm (W) x 150mm (D) x 26mm (H) without wall mount bracket

  • Metal chassis with fanless design

  • Operating temperature
    Ambient with air flow: -5°C to 55°C
    (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
  • Storage temperature: -20°C to 75°C
  • Relative humidity: 10% to 95% (non-condensing)
  • Shock protection
    - mSATA: 50G, half sine, 11ms, IEC60068-2-27
  • Vibration protection with mSATA condition
    - Random: 2Grms @ 5~500 Hz, IEC60068-2-64
    - Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6

  • CE
  • FCC Class A

Ordering Information

NISE 52-A01 (P/N: 10J00005200X0)

Intel® Celeron® J3455 processor fanless system

24V, 60W AC/DC power adapter w/o power cord (P/N: 7400060054X00)
