Intel® Celeron® Processor 6305E Dual Core Fanless System

  • Onboard Intel® Celeron® 6305E Processor
  • 4 x HDMI
  • 3 x USB 3.0, 1 x USB 2.0
  • 1 x RS232/422/485, 1 x RS232
  • 3 x GbE LAN ports; support WoL, teaming and PXE
  • Onboard TPM 2.0 chip
  • 1 x M.2 socket for storage/4G LTE/5G modules
  • 1 x mini-PCIe socket support optional mSATA/Wi-Fi/BT/4G LTE module
  • Support operating temperature from-5 to 55 Celsius degree
  • Support+12V to 24VDC input; support ATX power mode


Powered by the latest generation of Intel® Celeron® processor (formerly codenamed "Tiger Lake-UP3"), NISE 70 is fanlsess PC designed for industrial applications which demand low power consumption and abundant I/O interfaces but with limited installation space.

NISE 70 supports a wide range of operating temperature from -5~55 Celsius degree and wide range DC power input from 12V to 24V. NISE 70 is also the first system in the slim NISE 50 series to support 4 independent displays and DDR4 3200MHz memory up to 32GB. The NISE 70 have strong connectivity - Ethernet-based LAN port and traditional Serial port, mainly for Modbus TCP or Modbus RTU communication. For wireless connectivity, there are 1 x mini-PCIe socket and 1 x M.2 socket which can support optional wireless modules for IoT applications, for example, Wi-Fi, Bluetooth, 4G LTE, 5G modules as well as storage module. NISE 70 is definitely the best choice for M2M intelligent system as an intelligent IoT gateway.


  • Onboard Intel® Celeron® processor 6305E
  • Support Intel® Core™ i7/i5 Tiger Lake-UP3 processors with different SKUs

  • 1 x DDR4 3200 SO-DIMM socket, support up to 32GB

  • 4 x HDMI ports, only support full HD(2K) monitor

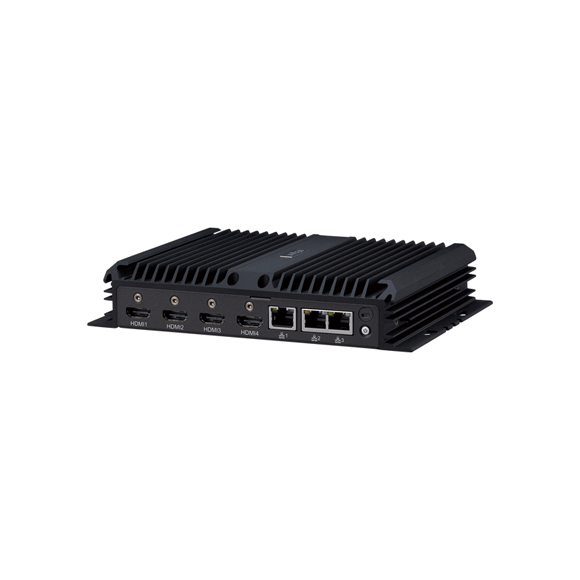

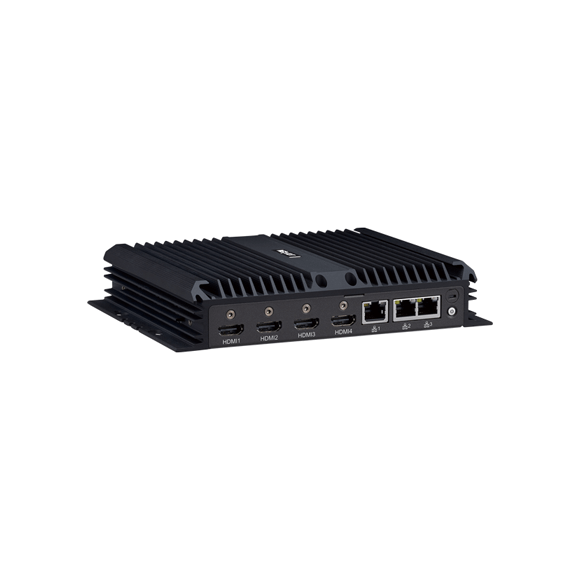

I / O接口-正面
  • ATX power on/off switch
  • 4 x HDMI port, only support full HD(2K) monitor
  • 2 x Intel® I210 and 1 x Intel® WGI219LM GbE LAN ports;
  • support WoL, teaming and PXE
  • 1 x Antenna hole

  • 1 x mini-PCIe socket for optional Wi-Fi/BT/4G LTE/mSATA
  • 1 x M.2, support B & B+M Key module for optional 4G LTE/5G/SATA storage (SATA/PCIe/USB, 2242/3042)

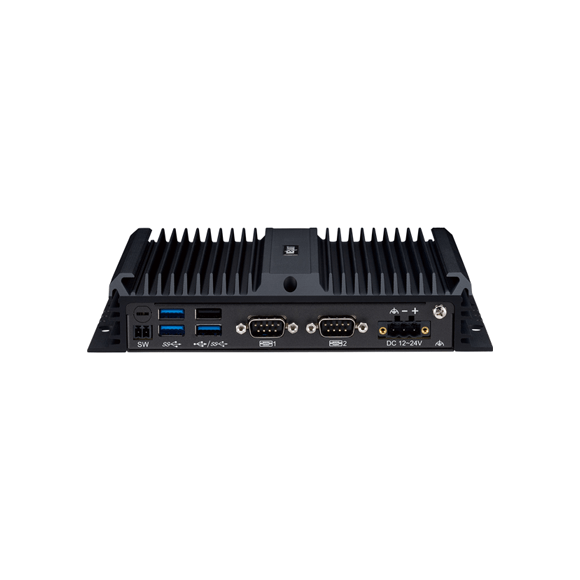

I / O接口-背面
  • 3 x USB 3.0 ports (900mA per each)
  • 1 x USB2.0 (500mA per each)
  • 2 x DB9 for COM1 & COM2
    - COM1: RS232/422/485 auto flow control
    - COM2: full RS232 signal
  • 1 x 2-pin remote power on/off switch
  • 2 x Antenna hole
  • Support+12V to 24V DC input

I / O接口-内部
  • 4 x GPI and 4 x GPO (programmable to GPI or GPO)

  • Power input: +12 to +24V DC
  • 1 x Optional 24V, 60W power adapter

  • Windows 10 64-bit
  • Linux Kernel

  • 198.8mm (W) x 150.4mm (D) x 37.7mm (H) with wall mount bracket

  • Aluminum and metal chassis with fanless design

  • Operating temperature:
    Ambient with air flow: -5°C to 55°(according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
  • Storage temperature: -20°C to 80°C
  • Relative humidity: 10% to 95% (non-condensing)
  • Shock protection:
    - M.2/mSATA: 50G, half sine, 11ms, IEC60068-2-27
  • Vibration protection with mSATA & M.2 condition:
    - Random: 2Grms @ 5~500 Hz, IEC60068-2-64
    - Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6

  • CE
  • FCC Class A

Ordering Information

NISE 70-T01 (P/N: 10J00007000X0)

Intel® Celeron® 6305E Tiger Lake-UP3 processor fanless system

NISE 70-T02 (P/N: 10J00007001X0)

Intel® Core™ i5 1145G7E Tiger Lake-UP3 processor fanless system

NISE 70-T03 (P/N: 10J00007002X0)

Intel® Core™ i7 1185G7E Tiger Lake-UP3 processor fanless system

24V, 60W AC /DC power adapter w/o power cord (P/N: 7400060054X00)
