NISE 2400- J1900

Intel® Celeron® Processor J1900 Quad Core Fanless System

  • Onboard Intel® Celeron® Processor J1900 Quad Core, 2.0GHz
  • Dual independent display from DVI-I and HDMI
  • 2 x Intel® I210IT GbE LAN ports; support WoL, teaming and PXE
  • 4 x USB 2.0 & 1 x USB 3.0
  • 2 x RS232 & 2 x RS232/RS422/RS485 with auto flow control
  • 2 x mini-PCIe socket for optional mSATA/Wi-Fi/4G LTE/3.5G/Fieldbus modules
  • Support -5 to 55 degree Celus extended operating temperature
  • Support 9-30V DC input


Powered by Intel® Celeron® Processor J1900 Quad Core, 2.0GHz. Driven by the latest Quad Core Intel® Celeron® Processor, NIE2400-J1900 can provide excellent computing power and is more power-efficient than the platforms based on the previous generation Intel® Celeron® product family.

NISE2400-J900 supports up to 8G DDR3L memory and have several options on storage devices like CFast, HDD, SSD or mSATA . The NISE2400-J900 comes with 1 x HDMI, 1 x DVI-I, 2 x GbE LAN ports, 2x COM port with RS232/422/485 and 5x USB ports including one USB 3.0. NISE2400-J900 supports 9~30V DC input, and can be operated in an extended operating temperature range from -5 to 55 degrees Celsius. This Fanless system supports two mini-PCIe modules, which can be an excellent platform for IOT applications (with optional GbE LAN, Wi-Fi, 3.5G/4G LTE module) and factory automation applications with optional fieldbus module. Its expansion versatility makes NISE2400-J900 a perfect platform for factory automation and M2M intelligent computing applications.


CPU Support
  • Onboard Intel® Celeron® Processor J1900 Quad Core, 2.0GHz
  • Support Intel® Atom™ E3800 processor family from single core E3815, dual core E3825/E3826/E3827 and quad core E3845 with difference SKUs

Main Memory
  • 2 x DDR3L SO-DIMM socket, support DDR3L 1066/1333 8GB RAM max., un-buffered and non-ECC

Display Option
  • Dual independent display
    • HDMI and DVI-I
    • HDMI and VGA (via DVI-I connector)

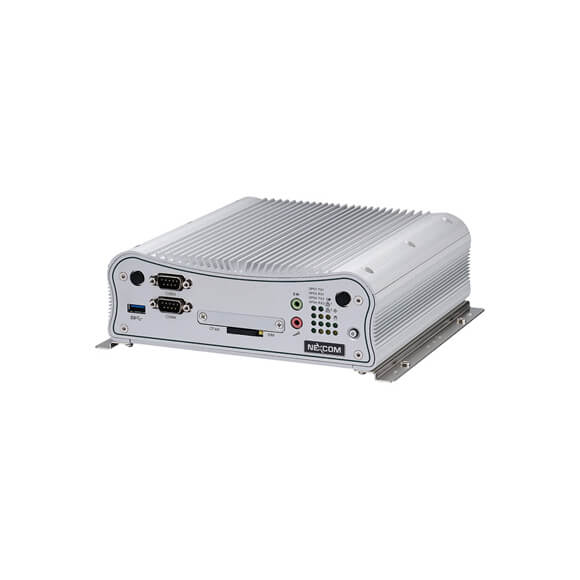

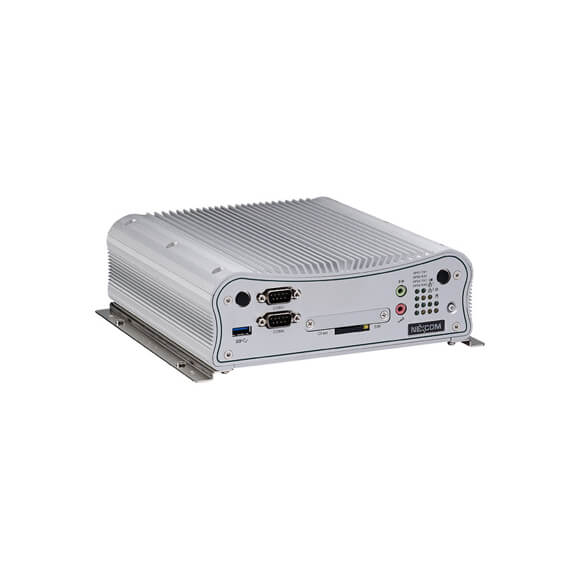

Front I/O Interface
  • ATX power on/off switch1 x Power status, 1 x HDD access, 1 x battery low, 4 x programming LEDs, 4 x Tx/Rx LEDs, 2 x LAN LEDs2 x DB9 RS232 for COM3 & COM41 x External CFast socket1 x SIM card holder1 x USB 3.0 (900mA per each)1 x Mic-in & 1 x Line-out2 x Antenna holes for optional Wi-Fi/3.5G antenna

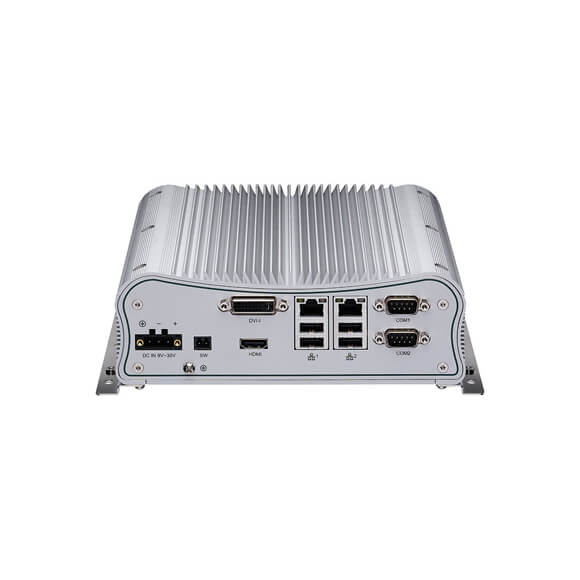

I/O Interface - Rear
  • 4 x USB 2.01 x DVI-I display output1 x HDMI display output1 x Remote power on/off switch2 x Intel® I210IT GbE LAN ports; support WoL, teaming and PXE2 x DB9 for COM1 & COM2, both support RS232/422/485 with auto flow control
    - Jumper-free setting on RS232/422/4851 x 3-pin DC input, support +9 to 30VDC input

I/O Interface - Internal
  • 4 x GPI and 4 GPO (5V, TTL type)

Storage Device
  • 1 x CFast card socket (SATA 2.0)1 x 2.5" HDD space (SATA 2.0)1 x mSATA from mini-PCIe socket if SATA HDD is not installed

Expansion Slot
  • 2 x mini-PCIe socket for optional Wi-Fi/4G LTE/3.5G

Power Requirement
  • Power input: +9Vdc to +30Vdc1 x Optional 24V, 60W power adapter

  • 191mm (W) x 200mm (D) x 60mm (H) without wall-mount bracket

  • Aluminum and metal chassis with fanless design

  • Operating temperature:
    Ambient with air flow: -5°C to 55°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
  • Storage temperature: -30°C to 85°C
  • Relative humidity: 10% to 95% (non-condensing)
  • Shock protection:
    • HDD: 20G, half sine, 11ms, IEC60068-2-27
    • CFast: 50G, half sine, 11ms, IEC60068-2-27
  • Vibration protection w/ HDD condition:
    • Random: 0.5Grms @ 5~500Hz, IEC60068-2-64
    • Sinusoidal: 0.5Grms @ 5~500Hz, IEC60068-2-6
  • Vibration protection w/ CFast & SSD condition:
    • Random: 2Grms @ 5~500Hz, IEC60068-2-64
    • Sinusoidal: 2Grms @ 5~500Hz, IEC60068-2-6

  • CE
  • FCC Class A

OS Support Lists
  • Windows 8, 32-bit/64-bit
  • Windows Embedded Standard 8, 32-bt/64-bit
  • Windows 7, 32-bit/64-bit
  • Windows Embedded Standard 7, 32-bit/64-bit
  • Windows 10 IoT Enterprise, 64-bit
  • Linux Kernel version 3.8.0

Ordering Information

NISE 2400-J1900 (P/N:10J00240002X0)

Onboard Intel® Celeron® Processor J1900 Quad Core, 2.0GHz

24V 60W AC/DC power adapter w/o power cord (P/N: 7400060024X00)
