NIFE 105

Intel® Atom™ x5-E3930 Dual Core Factory Automation Fanless System with Palm Size form Factor

主要特点
  • Onboard Intel® Atom™ x5-E3930 processor Dual Core 1.8GHz
  • 1 x HDMI display
  • 2 x Intel® I210IT GbE LAN ports; support WoL, teaming and PXE
  • 4 x USB 3.0
  • 2 x mini-PCIe sockets for optional Wi-Fi/3.5G/LTE modules
  • 2 x RS232/422/485 with auto flow control
  • 1 x External SD card slot and 1 x SIM card socket
  • Support -5~55 degree C operating temperature
  • Support typical +24VDC ±20%

Overview

NEXCOM's NIFE product line comes in a range of form factors and processor configurations including Intel® Atom™ and Intel Core processors to suit different application requirements. For NIFE 105, it positions itself at the entry level of fieldbus controller, and suitable for M2M communication gateway and data server applications. Boosted by Intel® latest Atom™ x5-E3930 Processor and the palm size form-factor, NIFE 105 is the most suitable entry level automation system which satisfying the needs of steady system performance and installation in gateway field or a small controller cabinet.

Using libraries of reusable logic and motion functionality, control schemes can be developed with reduced programming efforts for fast deployment of SoftPLC controller and M2M gateway.

Specifications

CPU Support
  • Onboard Intel® Atom™ x5-E3930 processor Dual Core 1.8GHz
Main Memory
  • On-board type 4GB DDR3L RAM
    - Un-buffered and non-ECC
Display Output
  • 1 x HDMI display

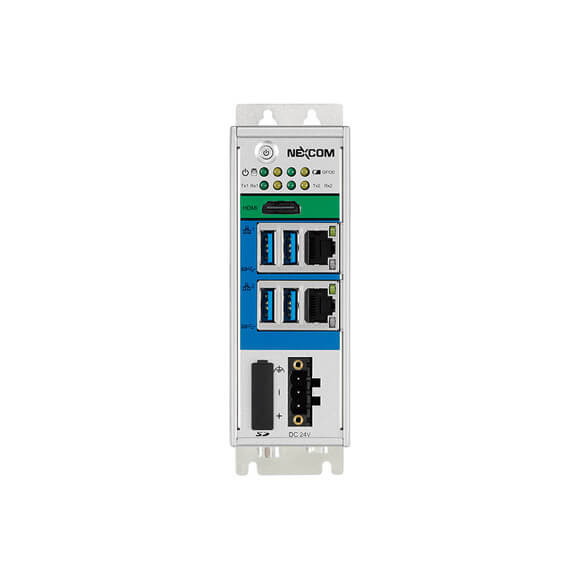

I/O Interface-Front
  • 2 x Intel® I210IT GbE LAN ports; support WoL, teaming and PXE
  • 4 x USB 3.0 (900mA)
  • 1 x External SD card slot (data storage only)
  • 1 x Power/1x HDD access LEDs
  • 1 x Battery low/1x GP0 programming LED
  • 2 x Tx/Rx LEDs
  • 1 x ATX power on/off switch

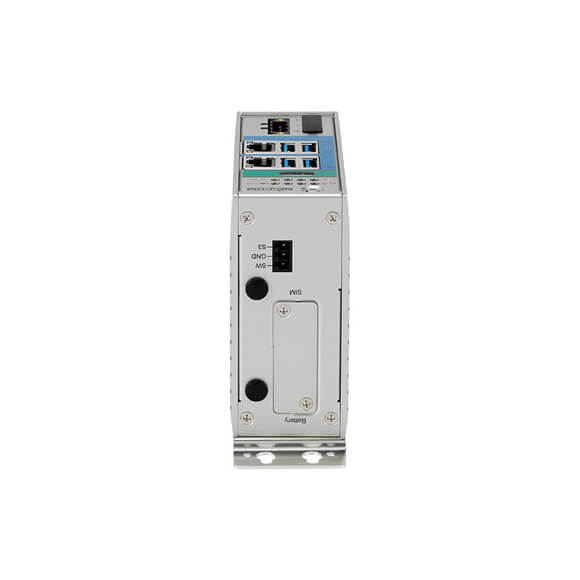

I/O Interface-Top
  • 1 x Remote switch
  • 1 x SIM card slot
  • 1 x RTC battery socket

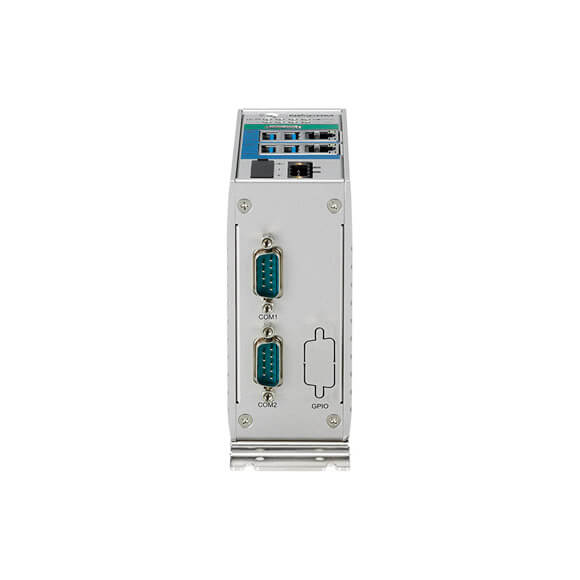

I/O Interface-Bottom
  • 2 x DB9, support RS232/422/485 with Auto Flow Control
  • 1 x Optional DB9, support 4 x GPI and 4 x GPO
Internal I/O Interface
  • 1 x USB2.0, 500mA max.
  • 1 x COM3, pin header, RS232 with Tx/Rx/RTS/CTS signal only
  • 1 x COM4, pin header, RS232 with Tx/Rx/RTS/CTS signal only
  • 4 x GPI and 4 x GPO (General purpose I/O), TTL 5V
Storage Device
  • Onboard 16GB eMMC
  • Optional mSATA module
Expansion
  • 1 x Full size mini-PCIe socket (USB+PCIe signal) for optional Wi-Fi/LTE/mSATA module
  • 1 x Full size mini-PCIe socket (USB+PCIe signal) for optional modules
Power Requirement
  • Power input: typical +24VDC ±20%
  • 1 x Optional 24V, 60W power adapter
Dimensions
  • 46.2mm (W) x 100mm (D) x 120mm (H)
Construction
  • Aluminum and Metal Chassis with front access design
Environment
  • Operating temperature:
    Ambient with air flow: -5°C to 55°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
  • Storage temperature: -20°C to 75°CRelative humidity: 10% to 93% (non-condensing)Shock protection:
    • mSATA/eMMC: 50G, half sine, 11ms, IEC60068-27
  • Vibration protection w/ mSATA or eMMC condition:
    • Random: 2Grms @ 5~500 Hz, IEC60068-2-64
    • Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Certifications
  • CE approval
    • - EN61000-6-2
    • - EN61000-6-4
  • FCC Class A
Support OS
  • Windows* 10 Enterprise (64-bit)

Ordering Information

NIFE 105 system (P/N: 10J70010500X0)

Intel Atom® x5-E3930 Dual Core Factory Automation Fanless System with 4G memory and 16G eMMC onboard

24V, 60W AC/DC power adapter w/ o power cord (P/N: 7400060033X00)
