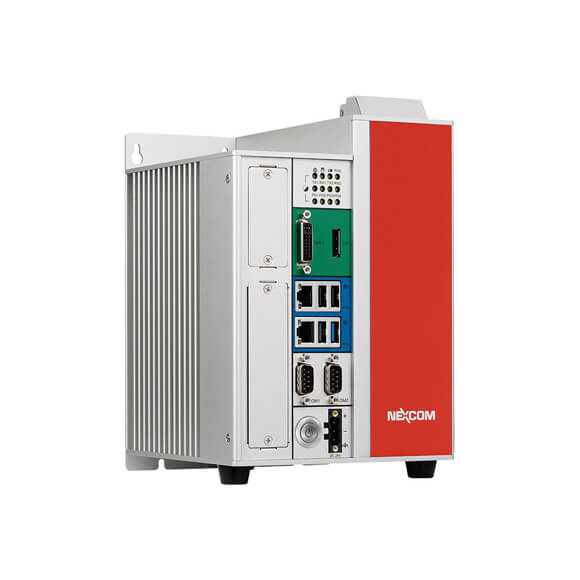

NIFE 200P2-E2-P2E

Intel® Celeron® J1900四线2.0GHz工厂自动化无风扇系统和现场总线扩展能力

主要特点
  • 板载Intel® Celeron®处理器J1900 Quad Core 2.0GHz
  • 双独立显示:DP和DVI-I
  • 2 x Intel® I210AT GbE LAN端口支持WoL, Teaming and PXE
  • 3 x USB 2.0 & 1 x USB 3.0
  • 2 x RS232/422/485
  • 2 x Mini-PCIe插口可选Wi-Fi/3.5G/4G LTE/Fieldbus模块
  • 顶部接入SD卡插槽
  • 支持 -5 ~ 55摄氏度操作温度
  • 典型的24V DC直流输入+/-20%范围

Overview

功能强劲的最新一代Intel® Celeron® 处理器J1900 (原代号“Bay Trail-D”), NIFE 200P2/P2E工厂自动化的智能机器人控制器和物联网网关。NIFE 200P2/P2E支持8G DDR3L内存和多个的存储设备,例如:SD, mSATA, HDD和SSD。 NIFE 200P2/P2E 支持操作温度-5至55摄氏度和24V + /-20%范围的直流电源输入。NIFE 200P2/P2E具有高集成能力和可选Mini-PCIe 模块和2 x COM 端口, 使它与工厂自动化的应用设备可靠连接 (可选PROFIBUS, ProfiNET, DeviceNET, EtherCAT, EtherNet/IP, CANopen, SERCOSIII主控模块), IOT物联网应用(可选GbE LAN, Wi-Fi, 3.5G/4G LTE 模块)和通信应用(可选 GPIO, RS232/422/485). NIFE 200P2/P2E作为工厂自动化控制器和物联网网关,是M2M智能系统的首选。

Specifications

CPU支持
  • Onboard Intel® Celeron® processor J1900 Quad Core 2.0GHz
  • Support Intel® Atom™ E3800 processor family from Single Core E3815, Dual Core E3825/E3826/E3827 and Quad Core E3845 with difference SKUs

内存
  • 2 x DDR3L SO-DIMM socket, support DDR3L 1066/1333 8GB RAM max., un-buffered and non-ECC

显示选项
  • Dual independent display
  • DVI-I and DP

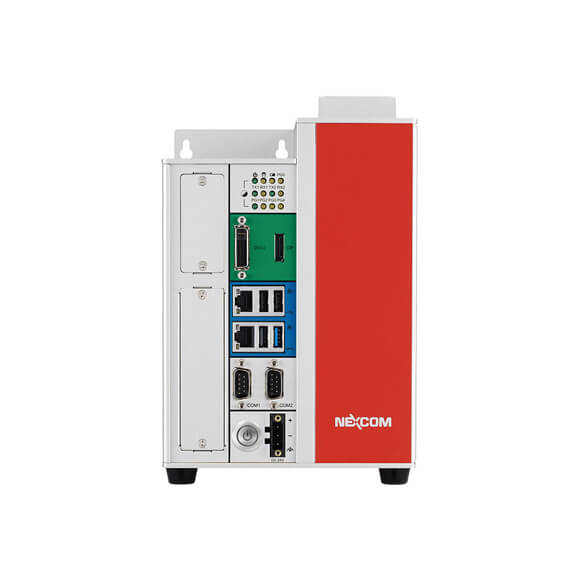

I/O接口-前面板
  • ATX power on/off switch
  • LEDs for HDD LED, Batty LEDs, Power LED, COM port Tx/Rx, 5x programmable GPO LEDs
  • 1 x External SD Card
  • 1 x SIM card holder
  • 2 x Intel® I210AT GbE LAN ports, support WoL, Teaming and PXE
  • 1 x DP display output
  • 1 x DVI-I display output
  • 1 x USB 3.0 (900mA per each)
  • 3 x USB 2.0 (500mA per each)
  • 2 x RS232/422/485 support auto flow control
    • Jumper-free setting on RS232/422/485
    • Support 2.5KV isolation protection on COM1
  • 1 x 3-pin DC input, Typical 24V DC input with +/-20% range

存储设备
  • 1 x 2.5" SSD/HDD(SATA 2.0) --front accessible
  • 1 x SD card (Data storage only)
  • 1 x mSATA

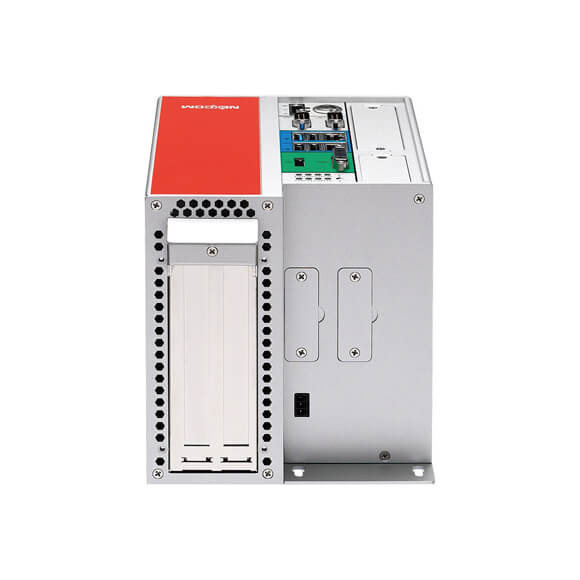

扩展槽
  • NIFE 200P2: two PCI expansion
    • Add-on card length: 176mm max.
    • Power consumption: 10W/slot max.
  • NIFE 200P2E: one PCI and one PCIe x4 expansion
    • Add-on card length: 176mm max.
    • Power consumption: 10W/slot max.
  • NIFE 200E2: two PCIe x1 expansion
    • Add-on card length: 176mm max.
    • Power consumption: 10W/slot max.2 x mini-PCIe socket for optional Wi-Fi/3.5G/4G LTE/fieldbus modules

电源需求
  • Typical 24V DC input with +/-20% range, with reverse polarity protection1 x optional 24V, 60W power adapter

体积
  • 151mm (W) x 157mm (D) x 230mm (H)

结构
  • Aluminum and metal chassis with fanless design

环境
  • Operating temperature:
    • - Ambient with air flow: -5°C to 55°C
    • - (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
  • Storage temperature: -20°C to 80°C
  • Relative humidity: 10% to 95% (non-condensing)
  • Shock protection:
      • HDD: 20G, half sine, 11ms, IEC60068-2-27
      • SSD: 50G, half sine, 11ms, IEC60068-2-27
  • Vibration protection w/ SSD condition:
  • Random: 2Grms @ 5~500Hz, IEC60068-2-64
  • Sinusoidal: 2Grms @ 5~500Hz, IEC60068-2-64

认证
  • CE Approval
    • EN61000-6-2
    • EN61000-6-4
  • FCC Class A
  • LVD
  • UL60950

支持操作系统
  • Windows 10 IoT Enterprise, 64-bit
  • Windows 7, 32-bit/64-bit
  • Windows Embedded Standard 7, 32-bit/64-bit
  • Linux Kernel version 3.8.0

Ordering Information

NIFE 200P2 (P/N: 10J70020001X0)
Intel® Atom™ processor J1900 Quad Core 2.0GHz fanless system

NIFE 200P2E (P/N: 10J70020002X0)
Intel® Atom™ processor J1900 Quad Core 2.0GHz fanless system

NIFE 200E2 (P/N: 10J70020019X0)
Intel® Atom™ processor J1900 Quad Core 2.0GHz fanless system

24V, 60W AC/DC power adapter w/o power cord (P/N: 7400060033X00)
