IPPC 0811-B01

8” TFT WVGA 16:9 Heavy Industrial Panel PC with Intel Atom® E3845Processor 1.91GHz, Multi-Touch Screen, 4GB DDR3L, M.2 64GB, 4 x Lan, 1 x COM

  • Intel Atom® E3845, Quad Core, 1.91GHz
  • 8” PCAP muti-touch screen with AR coating
  • 4 Gigabit Ethernet/mini DP for external monitor
  • Auto dimming function can be adjust by ambient light
  • DDR3L 4GB/M.2 SATA 64GB
  • IP65 compliant front panel
  • Built in 24VDC Isolated protection power input
  • Mounting support: flush/VESA 75mm x 75mm

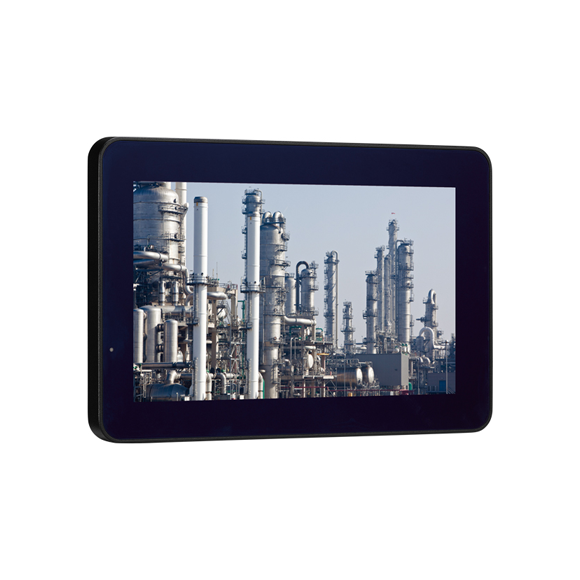

The 8” fanless panel PC IPPC 0811-B01 incorporating an industrial motherboard is intended for versatile industrial applications. The panel PC has a touch screen LED backlight LCD panel with 800 x 480 (WVGA) resolution. The front panel which adopts flush design and complies with IP65 standard makes it the perfect fit in industrial applications.

The IPPC 0811-B01 supports 4 Gigabit Ethernet connectors, and one M.2 slot. With support for isolated protection DC power input of 24VDC, IPPC 0811-B01 can gain a strong foothold in industrial field and machine devices. In addition, IPPC 0811-B01 can hook 2nd display via a mini DP for dual independent display. IPPC 0811-B01 has one adjustable RS232/422/485 ports.


  • LED size: 8”, 16:9
  • Resolution: WVGA 800 x 480
  • Luminance: 600cd/m2
  • Contrast ratio: 600
  • LCD color: 16.2M
  • Viewing angle: 60(U), 60(D), 70(L), 70(R)
  • Backlight: LED

Touch Screen
  • Ten points P-Cap (projected capacitive touch)
  • Touch light transmission: 89%
  • Anti-scratch surface: 7H hardness with AR coating
  • Touch interface: USB

  • CPU: onboard Intel Atom® processor E3845, 1.91 GHz, 2M L2 Cache
  • System memory: 1 x 204-pin DDR3L SO-DIMM socket, 4GB DDR3L (default),
    support up to 4GB DDR3L-1866, non-ECC and un-buffered
  • Storage device:
    - 1 x SATA M.2 2242 Key B connector, 64G M.2 SATA (default)
    - 1 x SATA connector, support SATA 3Gb/s and SATA 6Gb/s
  • Watchdog timer: Watchdog timeout can be programmable by software
    from 1 second to 255 seconds and from 1 minute to 255 minutes
    (tolerance 15% under room temperature 25°C)
  • H/W status monitor: monitoring system temperature, and voltage
  • Front LED indicator to show operating status
  • Backlight control
    - Control button: increase brightness, decrease brightness, backlight on/off
    - Auto dimming function can be adjust by ambient light sensor

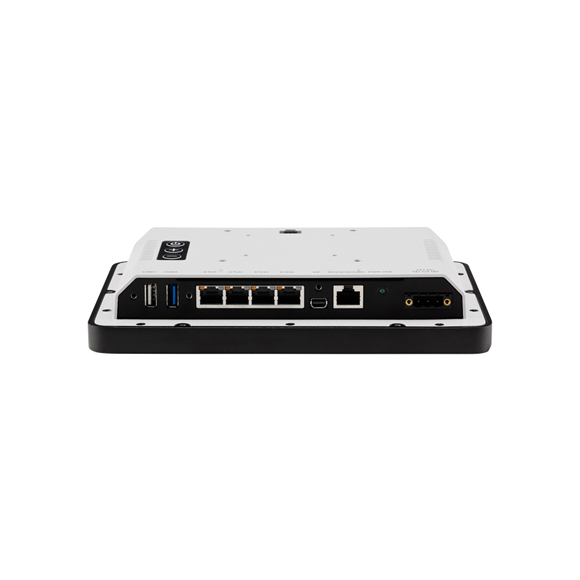

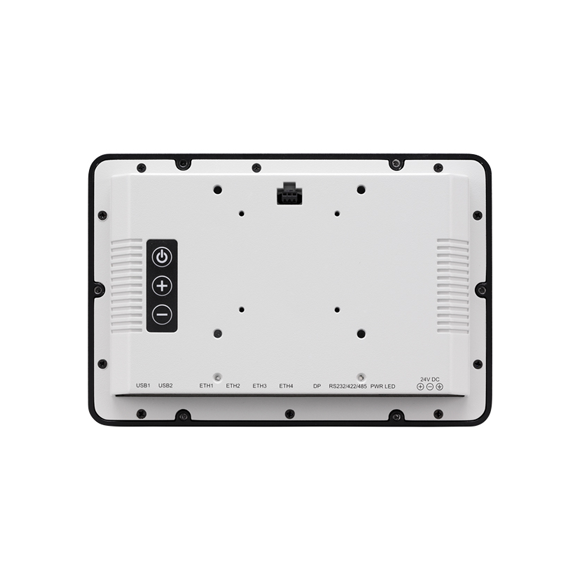

Rear I/O
  • Ethernet: 4 x RJ45
  • 2nd DP: 1 x mini DP
  • USB: 1 x USB 2.0, 1 x USB 3.0
  • COM #1: 1 x RJ45 output for RS232/422/485
  • Power status LED
  • DC power input connector: 3-pin phoenix terminal blocks

  • LAN chip: 4 x Intel® I210-IT Gigabit LAN
  • Ethernet interface: 10/100/1000 Mbps
  • Support wake up on LAN

Power Requirements
  • Input voltage: 24VDC
  • Reverse polarity protection
  • Galvanic isolated
  • Power consumption: 13W to 25W

Mechanical & Environment
  • Fanless system design
  • Color:
    - Pantone black RAL9005, powder painting for aluminum
  • front bezel
    - Pantone 421C RAL7035, for aluminum back cover
  • IP protection:
    - IP65 front bezel
    - IP20 back system
  • Mounting: VESA 75mm x 75mm/flush (optional)
  • Vibration:
    - 1.15Grms @ random condition, 1~200Hz, 1.5hr/axis(operating/non-operating)
  • Shock
    - IEC 68 2-27
    - 20G @ wall mount, half sine, 11ms
  • Operating temperature: -25°C to 60°C
  • Storage temperature: -25°C to 75°C
  • Operating humidity: 10%~90% relative humidity, non-condensing
  • Dimension: 218.5 x 147.5 x 39.5 mm
  • Weight: 3 kg

  • CE (including EN61000-6-2/EN61000-6-4)
  • FCC class A

OS Support
  • Windows 10 64-bit

Ordering Information

IPPC 0811-B01 (P/N: 10II0081100X0)
8” TFT WVGA 16:9 heavy industrial panel PC with Intel Atom® E3845 Processor 1.91GHz, multi-touch screen, 4GB DDR3L, M.2 64GB, 4 x Lan, 1 x COM, 1 x mini DP

12V, 60W AC/DC power adapter w/o power cord (P/N: 7400060054X00)
