IPPC 1211-B01

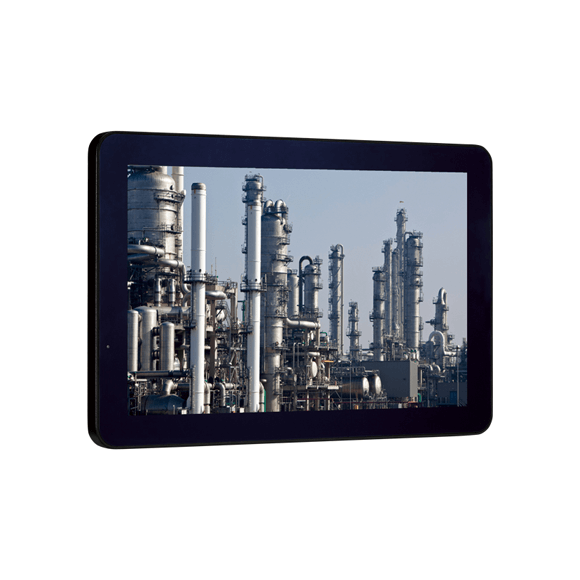

12.1” TFT WXGA 16:9 Heavy Industrial Panel PC with Intel Atom® E3845 Processor 1.91GHz, Multi-Touch Screen, 4GB DDR3L, 4 x Lan, 1 x COM

  • Intel Atom® E3845, Quad Core, 1.91GHz
  • 12.1” PCAP muti-touch screen with AR coating
  • 4 Gigabit Ethernet/mini DP for external monitor
  • Auto dimming function can be adjust by ambient light
  • DDR3L 4GB/1 swappable SSD tray for 2.5” SSD
  • IP65 compliant front panel
  • Built in 24VDC isolated protection power input
  • Mounting support: flush/VESA 75mm x 75mm


The 12.1” fanless panel PC IPPC 1211-B01 incorporating an industrial motherboard is intended for versatile industrial applications. The panel PC has a touch screen LED backlight LCD panel with 1280 x 800 (WXGA) resolution. The front panel which adopts flush design and complies with IP65 standard makes it the perfect fit in industrial applications.

The IPPC 1211-B01 supports 4 Gigabit Ethernet connectors, and one M.2 slot. With support for isolated protection DC power input of 24VDC, IPPC 1211-B01 can gain a strong foothold in industrial field and machine devices. In addition, IPPC 1211-B01 can hook 2nd display via a mini DP for dual independent display. IPPC 1211-B01 has one adjustable RS232/422/485 ports.


  • LED size: 12.1”, 16:9
  • Resolution: WXGA 1280 x 800
  • Luminance: 600cd/m2
  • Contrast ratio: 1000
  • Viewing angle: 85(U), 85(D), 85(L), 85(R)
  • Backlight: LED

  • Ten points P-Cap (projected capacitive touch)
  • Touch light transmission: 89%
  • Anti-scratch surface: 7H hardness with AR coating
  • Touch interface: USB

  • Storage device:
    - 1 x SATA M.2 2242 Key B connector, M.2 2242 SATA storage(optional)
    - 1 x SATA connector for 1x swappable 2.5” SSD tray,
    support SATA 3Gb/s and SATA 6Gb/s, 2.5” SATA storage (optional)
  • Watchdog timer: Watchdog timeout can be programmable by software
    from 1 second to 255 seconds and from 1 minute to 255 minutes
    (tolerance 15% under room temperature 25°C)
  • H/W status monitor: monitoring system temperature, and voltage
  • Front LED indicator to show operating status
  • Backlight control
    - Control button: increase brightness, decrease brightness, backlight on/off
    - Auto dimming function can be adjust by ambient light sensor

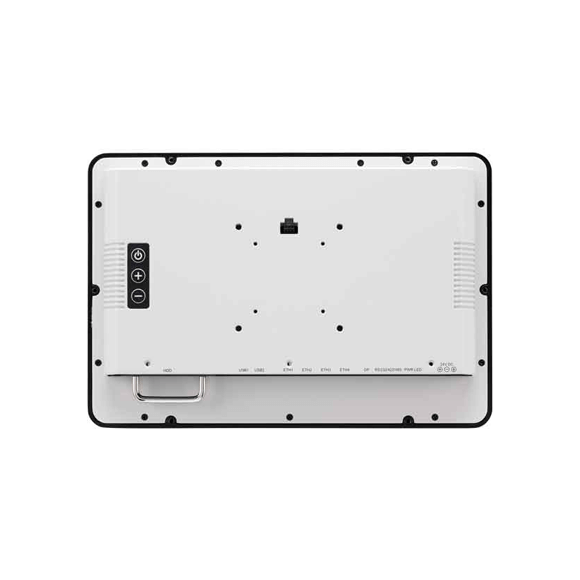

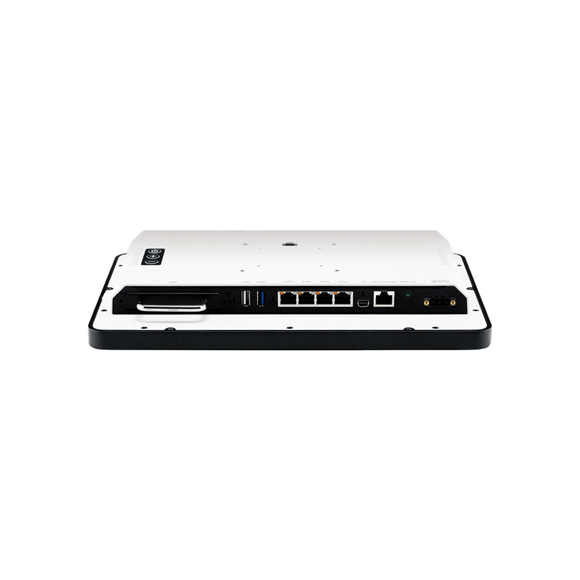

Rear I/O
  • Ethernet: 4 x RJ45
  • 2nd displayport: 1 x mini DP
  • USB: 1 x USB 2.0, 1 x USB 3.0
  • COM #1: 1 x RJ45 output for RS232/422/485
  • Power status LED
  • DC power input connector: 3-pin phoenix terminal blocks

  • LAN chip: 4 x Intel® I210-IT Gigabit LAN
  • Ethernet interface: 10/100/1000 mbps
  • Support wake up on LAN

Power Requirements
  • Input voltage: 24VDC
  • Reverse polarity protection
  • Galvanic isolated
  • Power consumption: 22W to 30W

Mechanical & Environment
  • Fanless system design
  • Color:
    - Pantone black RAL9005, powder painting for aluminum front bezel
    - for aluminum back cover
  • IP protection:
    - IP65 front bezel
    - IP20 back system
  • Mounting: VESA 75mm x 75mm/flush (optional)
  • Vibration:
    - 1.15Grms @ random condition, 1~200Hz, 1.5hr/axis(operating/non-operating)
  • Shock
    - IEC 68 2-27
    - 20G @ wall mount, half sine, 11ms
  • Operating temperature: -25°C to 60°C
  • Storage temperature: -25°C to 75°C
  • Operating humidity: 10%~90% relative humidity, non-condensing
  • Dimension: 307.5
  • Weight: 5 kg

  • CE (including EN61000-6-2/EN61000-6-4)
  • FCC class A

OS Support Lists
  • Windows 10 64-bit

Ordering Information

IPPC 1211-B01 (P/N: 10II0121100X0)
12.1” TFT WXGA 16:9 Heavy Industrial Panel PC with Intel Atom® E3845 Processor 1.91GHz, multi-touch screen, 4GB DDR3L, 4 x Lan, 1 x COM, 1 x mini DP

2V, 60W AC/DC power adapter w/o power cord (P/N: 7400060054X00)
