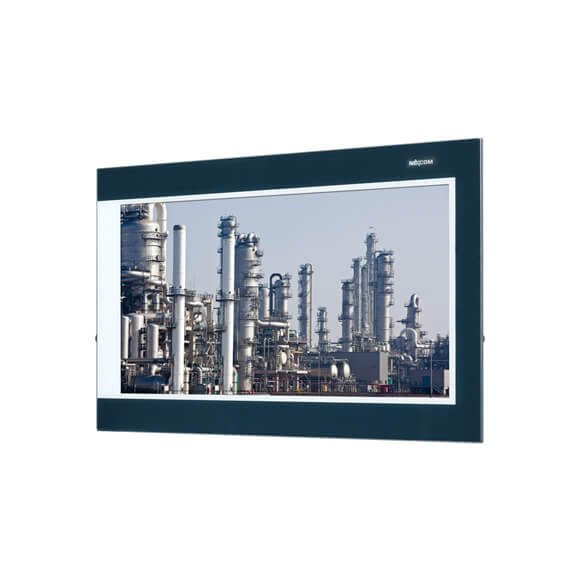

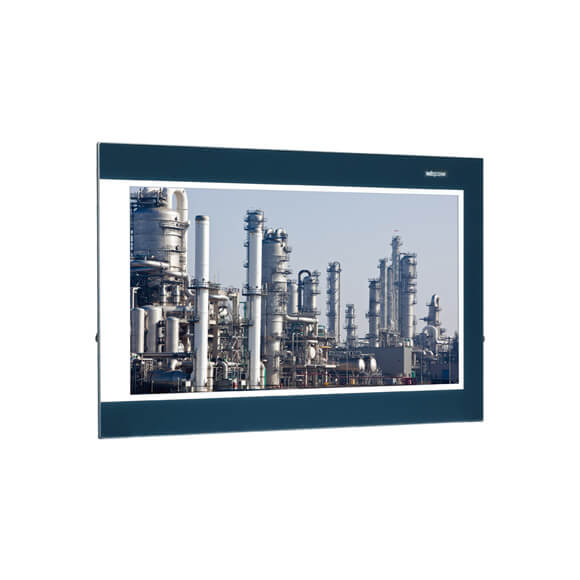

IPPC 2140P

21.5" Full HD 16:9 Heavy Industrial Panel PC with Intel® Celeron® quad core processor J1900, up to 2.42GHz, Multi-Touch Screen, 8GB DDR3L, 3 x USB, 2 x COM

  • Intel® Celeron® quad core processor J1900, up to 2.42GHz, 2M L2 Cache
  • Metal housing with robust aluminum front zero bezel for harsh environment
  • 10 points P-Cap multi-touch with zero bezel flush front design
  • Dual GbE/2nd display-VGA/ Line-out/PS2 KB/MS
  • 3 x USB/2 x mini-PCIe sockets/1 x CFast/2 x RS232/422/485
  • DDR3L 8GB/2.5” HDD bracket
  • IP66 compliant front panel
  • Mounting support: panel/wall/stand/VESA 100mm x 100mm
  • Wide range power input 12~30VDC


The 21.5” fanless panel PC IPPC 2140P incorporating an industrial motherboard is intended for versatile industrial applications. The panel PC has a touch screen LED backlight LCD panel with 1920 x 1080 (Full HD) resolution. The front panel which adopts flush design and complies with IP66 standard makes it the perfect fit in industrial applications.

The IPPC 2140P supports WWAN/WLAN expansion and others via dual Gigabit Ethernet connectors, two mini-PCIe slots and one SIM card holder. With support for wide power input of 12~30VDC, IPPC2140P can gain a strong foothold in industrial field and machine devices. In addition, IPPC 2140P can hook 2nd display via a VGA port for dual independent display. IPPC 2140P has two isolated RS232/422/485 ports.


  • LCD size: 21.5”, 16:9
  • Resolution: Full HD 1920x1080
  • Luminance: 300cd/m2
  • Contrast ratio: 5000
  • LCD color: 16.7M
  • Viewing angle: 89 (U), 89 (D), 89 (L), 89 (R)
  • Backlight: LED

  • Ten points P-Cap (Projected Capacitive Touch)
  • Touch light transmission: 87%
  • Anti-scratch surface: 7H hardness
  • Touch interface: USB

  • CPU: onboard Intel® Celeron® Quad Core processor J1900, 2.0GHz, 2M L2 Cache (maximum frequency 2.42GHz if turbo boost enabled)
  • System memory: 2 x 204-pin DDR3L SO-DIMM socket, 4GB DDR3L (default), support up to 8GB DDR3L-1066/1333, non-ECC and un-buffered
  • Storage device:
    • 1 x external locked CFast socket
    • 1 x hard drive bay: optional 1 x 2.5” SATA HDD or 1 x SATA DOM
  • Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)
  • H/W status monitor: monitoring system temperature, and voltage
  • Expansion: 2 x mini-PCIe sockets (support optional Wi-Fi, 3.5G module or fieldbus card)
  • Panel backlight control button: Increase brightness/decrease brightness/ backlight on/off
  • Front logo LED Indicator to show operating status

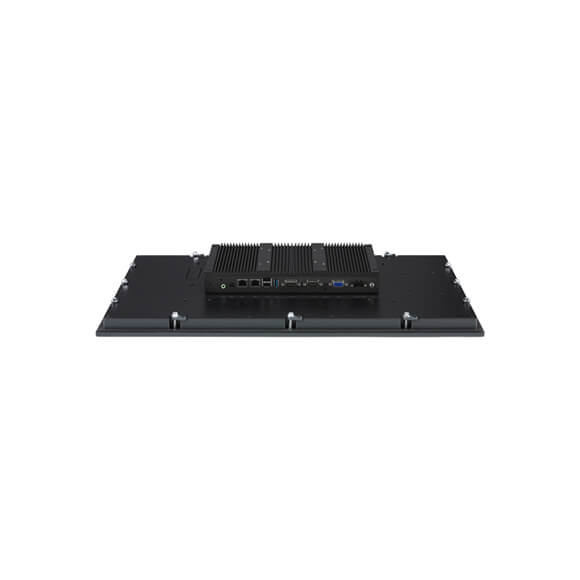

Rear I/O
  • Ethernet: 2 x RJ45
  • 2nd display VGA port: 1 x DB15
  • Audio port: 1 x Line out
  • USB: 2 x USB 2.0, 1 x USB 3.0
  • 2-pin Remote Power on/ off switch
  • Power switch
  • Reset button
  • COM #1: RS232/422/485 w/ 2.5kv isolated
  • COM #2: RS232/422/485 w/ 2.5kv isolated

  • HD codec: Realtek ALC886-GR
  • Audio interface: Line-out audio jack

  • LAN chip: dual Intel® I210AT Gigabit LAN
  • Ethernet interface: 10/100/1000 Based-Tx Ethernet compatible

Mechanical & Environment
  • Color: Pantone 432C/RAL 70 24 front bezel
  • IP protection: IP66 front
  • Mounting: panel/ wall/ stand/ VESA 100mm x 100mm
  • System with panel mounting kit w/o panel mounting hole
  • Power input: 12~30VDC
  • Power adapter: Optional AC to DC power adapter (+12V, 60W)
  • Vibration:
    • IEC 68 2-64 (w/ HDD)
    • 1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating)
    • 2Grms @ sine, 5~500Hz, 1hr/axis (CFast operating)
    • 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating)
  • Shock:
    • IEC 68 2-27
    • HDD: 20G@wall mount, half sine, 11ms
  • Operating temperature: -10°C to 60°C
  • Storage temperature: -20°C to 75°C
  • Operating humidity: 10%~90% relative humidity, non-condensing
  • Dimension: 562.4x382.4x62.85mm
  • Weight: 9.26Kg

  • CE (including EN61000-6-2/EN61000-6-4)
  • FCC Class A

OS Support Lists
  • Windows 7 32bit/64bit
  • WinCE 7.0

Ordering Information

IPPC 2140P-B (P/N: 10II2140P07X0)
21.5" full HD LED backlight touch panel PC, Intel® Celeron® quad core processor J1900, up to 2.42GHz, 2M L2 Cache, touch screen, 4GB DDR3L, 2 x RS232/422/485

12V, 60W AC/DC power adapter w/o power cord (P/N: 7400060031X00)
