EBC358X

Intel® Elkhart Lake Atom® x6000 Processor

主要特点
  • Intel® Atom® x6000 processor
  • 1 x SO-DIMM DDR4 with non-ECC SO-DIMM 3200 MHZ up to 32GB
  • Support triple display VGA, HDMI, LVDS
  • 2 x Intel®GbE LAN, 2 x USB 3.2 (Gen1), 3 x USB 2.0, 3 x RS232
  • 1 x RS232/485/422, 1 x SATA3.0 , 8-bit GPIO, HD audio
  • 2 x Intel® i210-IT PCI express Gigabit Ethernet
  • 1 x M.2 Key B
  • TPM 2.0
  • 12V or 24 V auto detect


Overview

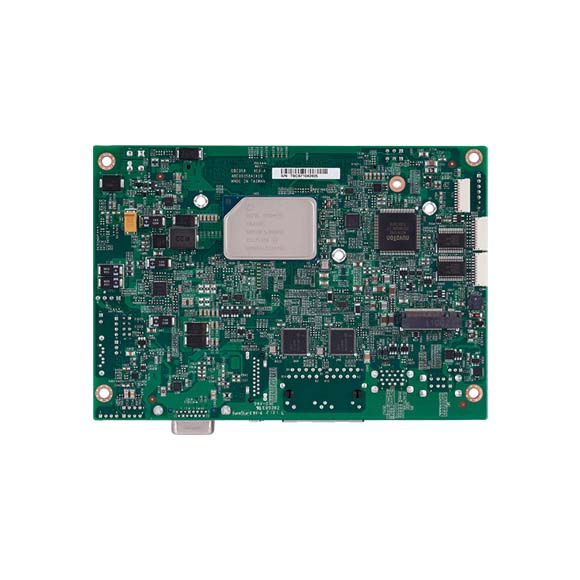

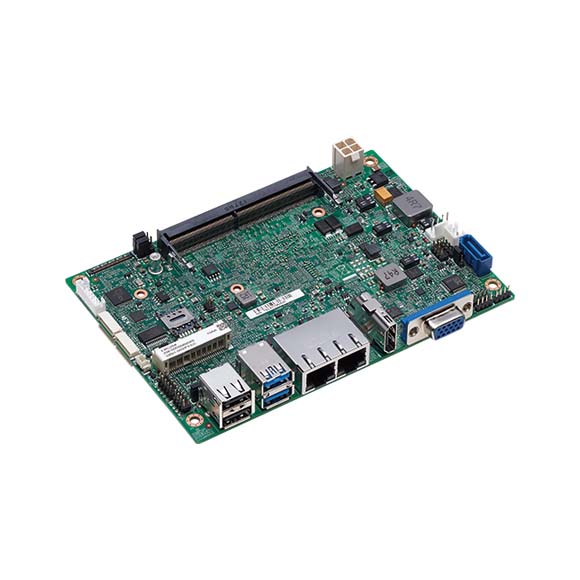

The EBC 358X is an 3.5” SBC. It is equipped with Intel Atom® x6000 processor. It comes with four DDR4 SO-DIMM sockets up to 32GB DDR4 3200MHz with non-ECC support and integrated UHD graphic controller.

EBC 358X operates at a temperature range from -40°C to 80°C, this design is ideal for embedded applications that run in outdoor or semioutdoor environments, such as outdoor systems installed in harsh environments, home automation, and thin clients.

3.5” SBC Target Market: Energy and environment/traffic signal control and monitoring/speed cameras/railway gates/MRT-TVM/charging stations

Specifications

CPU/Chipset
  • Intel Atom®x6000 series processors, BGA 1493
    - Intel® Atom® x6425E processor, Quad Core, 1.5M Cache, 2.0GHz (3.0GHz), 12W
    - Intel® Atom® x6413E processor, Quad Core, 1.5M Cache, 1.5GHz (3.0GHz), 9W
    - Intel® Atom® x6413E processor, Quad Core, 1.5M Cache, 1.5GHz (3.0GHz), 9W
Main Memory
  • DDR4-3200 SO-DIMM sockets supported
BIOS
  • AMI (UEFI)
Display
  • 1 x VGA (resolution up to 1920 x 1080@60Hz)
  • 1 x HDMI 1.4b (resolution up to 3840 x 2160@30Hz)
  • 1 x Dual channel 18/24-bit LVDS (resolution up to 1920 x 1080@60Hz)
Storage
  • 1 x SATA 3.0/1 x SATA power connector x 1(+5V)
Expansion Slot
  • 1 x Full size mPCIe with nano-SIM (support PCIe/USB 2.0 Interface)
  • 1 x M.2 3042 Key B (support SATA/PCIe/USB 3.2 Gen1) with nano-SIM
Rear I/O
  • 2 x USB 3.2 Gen 1
  • 2 x GbE LAN (Intel i210-IT)
  • 2 x USB 2.0
  • 1 x VGA, 1 x HDMI connector
Internal I/O
  • 2 x USB 2.0 (pin header)
  • 4 x Serial ports:
  • 1 x RS232, 2 x RS232/485/422.
  • 1 x Front panel header, 8-bit digital I/O(4-In/4-Out)
  • WDT, supports onboard TPM 2.0
  • HD audio (Line-Out, SPK-Out, Mic-In)
  • 1 x Fan connector
  • 1 x 4-pin (2 x 2) ATX power connector
Power Requirements
  • 1 x 4-pin (2 x 2) ATX power connector
    - Input power DC 12V or 24V only
  • Support both AT and ATX power supply mode
Dimensions
  • 3.5” SBC form factor, (146mm x 105mm)
Environment
  • Board level operation temperature: -40°C to 80°C (base on the cooler kit)
  • Storage temperature: -40˚C to 85˚C
  • Relative humidity:
    - 10% to 95% (operating, non-condensing)
    - 5% to 95% (non-operating, non-condensing)
Certifications
  • Meet CE
  • FCC Class A

Ordering Information

Barebone

EBC 358X (P/N: 10E00035803X0)
3.5” SBC, Intel® Atom® x6425E processors, temperature: -40°C to 80°C

EBC 358X-6413E (P/N: 10E00035805X0)
3.5” SBC, Intel® Atom® x6413E processors, operation temperature: -40°C to 80°C

EBC 358X-6211E (P/N: 10E00035806X0)
3.5” SBC, Intel® Atom® x6211E Processors, temperature: -40°C to 80°C


Optional Accessories

EBC358X COOLER KIT (P/N:10E00035808X0 )

EBC358 HEAT SPREADER KIT (P/N:10E00035804X0)
