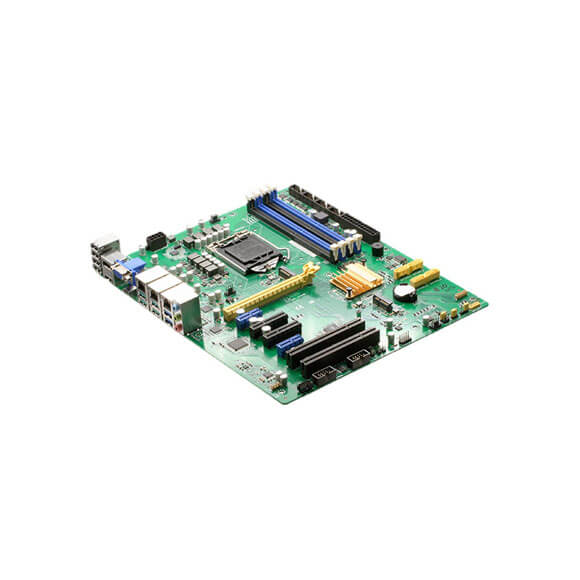

NEX913

ATX工业计算机具有高计算能力和与丰富I / O，支援工厂自动化，物流，电子制造，智能交通

主要特点
  • 第八/九代Intel® (Coffee Lake-S, Coffee Lake-S Refresh) Core™ i9/ i7/ i5 /i3, Pentium 14nm LGA 1151 socket 处理器, Max. 95W, PCH Q370
  • 4 x U-DIMM DDR4 ECC或非ECC SO-DIMM 2666MHZ内存，最大64GB
  • 支持三重显示HDMI, DP, VGA
  • 2 x Intel® GbE LAN ports(BOM option: RJ45 x 3), 4 x USB 3.1(Gen2), 2 x USB 3.1(Gen1), 4 x USB 2.0, 5 x RS232, 1x RS232/485/422, 4 x SATAIII, 8bit GPIO, HD Audio
  • 1 x PCIex16, 2 x PCiex4, 2 x PCIex1, 2 x PCI, 1 x M.2 (2230 E-Key), 1 x M.2 (2280 M-Key)
  • TPM（可选）

Overview

NEX913是一款ATX主板，搭载第8/9代Intel® Core™ i9/i7/i5/i3/奔腾处理器，支持最大95W和Intel® Q370芯片组。它配备四个DDR4 DIMM插槽，最高64GB DDR4 2666MHz，支持非ECC和集成高清显卡控制器。NEX913采用Intel® Q370 PCH，提供高性能和丰富扩展。具有RAID 0、1、5和10的SATA3.0端口有助于快速访问数据和数据保护。此外，它还集成了Intel® AMT 12主动管理技术，便于维护。

NEX913工作温度范围为 0°C 至 60°C，该设计非常适合在室外或半室外环境中运行的嵌入式应用，例如信息亭、安装在恶劣环境中的室外系统、家庭自动化和瘦客户端。

Specifications

CPU / Chipset
  • Intel® 8/9th Generation(Coffee Lake-S, Coffee Lake-S Refresh) Core™ i9/i7/i5/i3/PentiumLGA 1151 socket Processor, Max. 95W
  • IntelR Q370 Express Chipset

Main Memory
  • 4 x DDR4 U-DIMM memory Socket with non-ECC support, up to 64 GB 2666MHZ

BIOS
  • AMI (UEFI)

Display
  • 1 x VGA connector (resolution up to1920x1080@60Hz)
  • 1 x HDMI1.4b connector (resolution Up to 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz, with Digital Audio)
  • 1 x DP connector (resolution Up to 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz, with Digital Audio)

System
  • 4 x USB3.1(Gen2), 2 x USB3.1(Gen1), 4 x USB2.0
  • 5 x RS232, 1 x RS232/485/422 & (COM1, supports 5V/12V/RI optional)
  • Realtek ALC887 6Channel HDA Codec
  • 1 x Front panel header, 8 bit digital I/O (In/Out programmable), WDT, Chassis Intrusion
  • Supports on board TPM 2.0(Optional)
  • 3 x Fan connector

Storage
  • 4 x SATA III (6.0Gb/s) ports, support RAID 0/1/5/10
  • 1 x M.2 2280 M-key(PCIex4/SATA3)

Expansion Slot
  • 1 x PCIex16, 2 x PCIex4(open edge), 2 x PCIex1(open edge), 2 x PCI
  • 1 x M.2 2230 E-key (PCIex1/USB2.0/CNVi)

Rear I/O
  • 1 x 4 deck USB 2.0
  • 1 x VGA, 1 x HDMI, 1 x DP
  • 2 x RJ45
    IntelR PHY i219LM Giga LAN x 1 (supports IntelR AMT 12.0)
    IntelR i211AT Giga LAN x 1 (BOM option: i211AT x 2)
  • 4 x USB 3.1(Gen2), 2 x USB 3.1(Gen1)
  • 1 x HD Audio connector (1 x Line-Out + MIC + Line-In 3.5mm Jack)

Internal I/O
  • 2 x USB2.0 (Pin Header)
  • 6 x serial ports
    5 x RS232, 1 x RS232/485/422(by COM1)
  • 1 x 8-bit Digital I/O interface (In/Out programmable)
  • HA Audio:
    1 x speaker header (Line-out)

Power Requirement
  • 1 x 24-pin ATX connect / 1 x 8-pin (2x4) ATX 12V Power connector
  • Support both AT and ATX power supply mode

Dimensions

  • ATX Form Factor, 12”x9.6” (305mm x 244mm)

Environment
  • Board level operation temperture : -0°C to 60°C
  • Storage temperture : -40℃ to 85℃
  • Relative humidty:
    10% to 95% (operating, non-condensing)
    5% to 95% (non-operating, non-condensing

Certifications
  • Meet CE / FCC Class A

Ordering Information

Barebone

NEX913 (P/N:6879G0009130F )
ATX, Intel® 8th/9th Coffee lake Core™ I (up to 95W), Q370, LGA1151, DDR4 x 4 up to 64GB, VGA, HDMI, DP , 4 x USB 3.1 (Gen2), 2 x USB 3.1 (Gen1) ,2 x USB2.0, 3 x GbE LAN , 4 x SATAIII, 5 x RS232, 1 x RS232/422/485, 1 PCIex16, 2 PCIex4, 2 PCI, 2 M.2.

Download

驅動程序
上传日期 文件名 版本 OS 描述 下载
2020/03/05 NEX913 USB3.0 1.0 All OS NEX913 USB3.0 7.5 MB
2020/03/05 NEX913 UART(Optional) 1.0 All OS NEX913 UART(Optional) 213.5 kB
2020/03/05 NEX913 ME 1.0 All OS NEX913 ME 104.6 MB
2020/03/02 NEX913 Chipset 1.0 All OS NEX913 Chipset 2.6 MB
2020/03/02 NEX913 Graphic 1.0 All OS NEX913 Graphic 221.7 MB
2020/03/02 NEX913 LAN 1.0 All OS NEX913 LAN 71.6 MB
2020/03/02 NEX913 Audio 1.0 All OS NEX913 Audio 215.2 MB
