NexECM

EtherCAT Master Software, provides all the basic EtherCAT communication functions which allow users to directly access standard EtherCAT slaves

MAIN FEATURE
  • Microsoft Windows API
  • Real-Time API
  • CIA 402 Motion Library
  • Powerful utility: NexECM Studio

Overview

NexECM is a NexCOBOT developed software EtherCAT master stack, NexECM runs on an RTOS platform and provides a precise communication cyclic frame from EtherCAT master to EtherCAT slave. NexECM provides all the basic EtherCAT communication functions which allow users to directly access standard EtherCAT slaves, such as process data access, mail box data access and support CoE (CANOpen over EtherCAT).

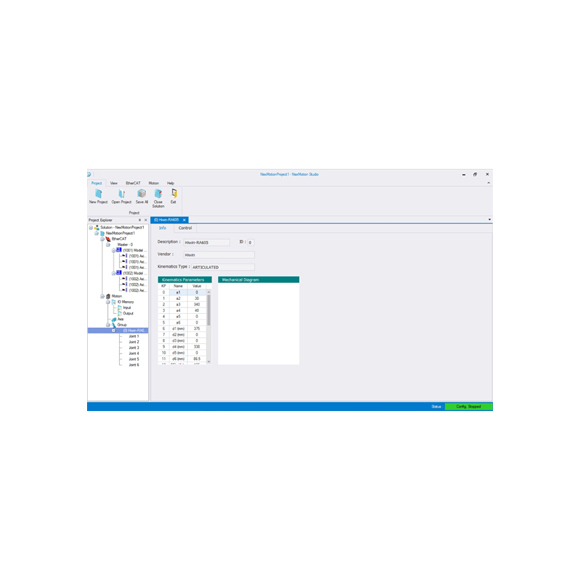

For users who want to configure EtherCAT slaves, NexECM also provides a powerful EtherCAT configuration tool called NexECM Studio. NexECM Studio help users scan EtherCAT slaves and create ENI (EtherCAT Network Information) files. For servo motor applications and digital I/O applications, NexECM Configuration Tool also provides a friendly user interface to directly control digital I/O, and servo motors based on the CiA402 standard.

NexECM provides Microsoft Windows APIs for users to build their own EtherCAT applications. For EtherCAT slaves synchronization control, ECM synchronizes with Distributed Clocks (DC) including master synchronization.

Specifications

Realtime OS

  • INtime

Comm. Cycle

  • Min. cycle time up to 250μs

Slave No.

  • 64

Motion API

  • CiA 402 Motion Library

Example

  • VB6/VC/VB.NET

Powerful Utility

  • NexECM Studio
    • Scan EtherCAT slave devices
    • Import ESI File, and export ENI file
    • Configure EtheCAT slave devices
    • Monitor EtherCAT communication quality
    • Test functions for EtherCAT slave devices

Ordering Information

NexECM (P/N:98ROBO000003F)
NexECM Realtime Software



Download

用户手册
上传日期 文件名 版本 OS 描述 下载
2020/03/19 EtherCAT master CIA402 servo control API 用户手册_CHZ 1.4 Windows EtherCAT master CIA402 servo control API 用户手册_CHZ 1001.6 kB
2020/03/19 EtherCAT Master 开发环境设置手册 1.0 Windows EtherCAT Master 开发环境设置手册 1.2 MB
2019/11/04 EtherCAT Master 用户手册_CHZ 1.9 Windows EtherCAT Master 用户手册_CHZ 2.5 MB
